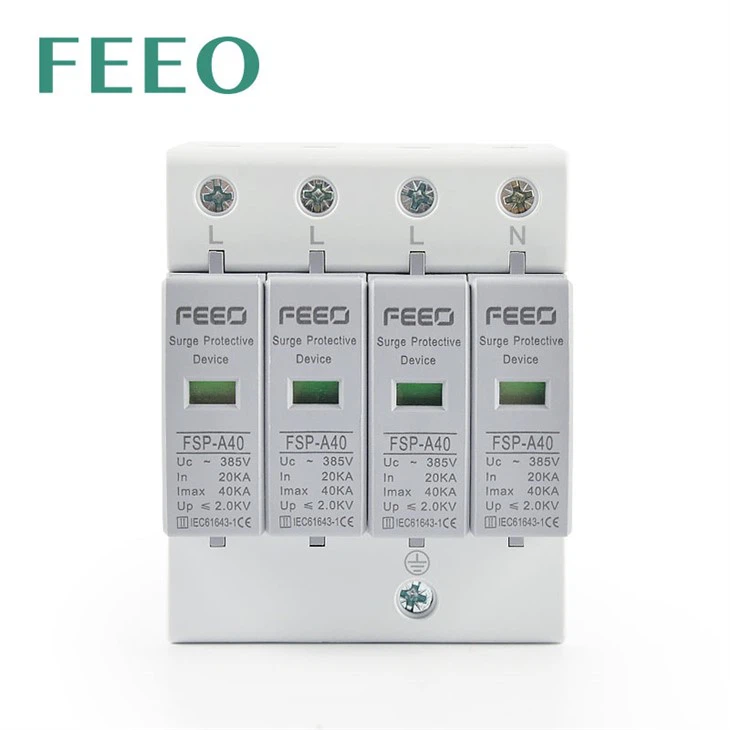

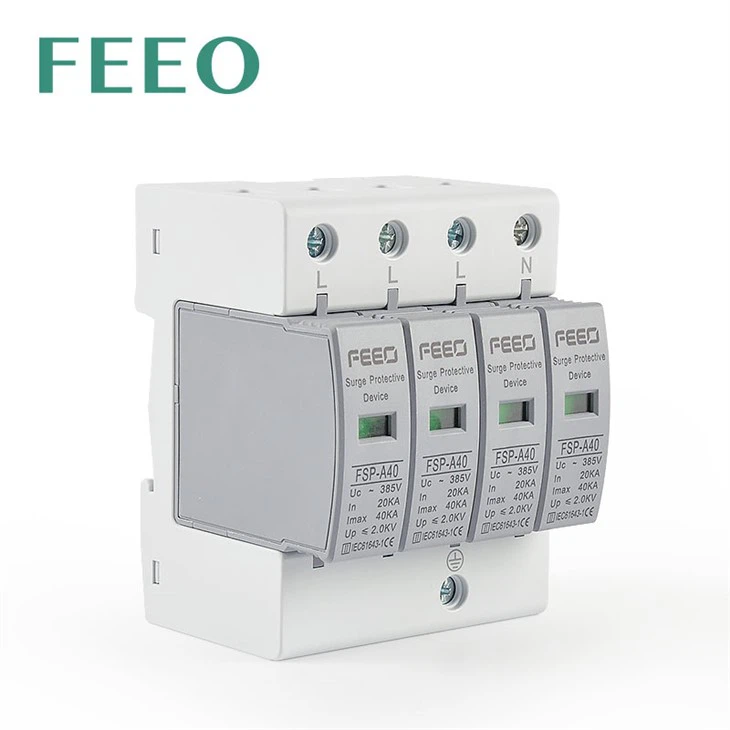

FEEO AC Surge arrester (SPD) FSP-A 4Poles yog tsim los tiv thaiv peb theem cov cuab yeej lossis cov tshuab los ntawm xob laim.Tshem tawm tam sim no ntau ntawm 5KA txog 100KA.

Xa kev nug

Khoom Taw qhia

Yueqing Feeo Electric Co., Ltd yog ib qho ntawm Tuam Tshoj 4p ac spd manufacturers thiab lwm tus neeg, yog tias koj yuav mus xyuas tus nqi nrog ib tug 4p ac spd Hoobkas hauv Suav teb, thov koj xav tiv tauj peb.

Product Description

FSP-A series surge tiv thaiv ntaus ntawv (hauv luv SPD, alias: surge suppressor surge arrester) yog

haum rau TN-S, TN-CS, TT, IT thiab lwm yam, fais fab mov ntawm AC 50/60Hz,<380V, installed on the

Kev sib koom ua ke ntawm LPZ1 lossis LPZ2 thiab LPZ3. Nws tau tsim raws li IEC61643-1, GB18802.1, nws siv

35 hli txheem rail, muaj ib tug tsis ua hauj lwm tso tawm mounted ntawm lub module ntawm surge tiv thaiv ntaus ntawv,

Thaum SPD ua tsis tiav hauv kev puas tsuaj rau cov cua sov thiab dhau tam sim no, qhov tsis ua haujlwm rlease yuav pab hluav taws xob

equipments cais los ntawm lub hwj chim mov system thiab muab cov cim qhia, ntsuab txhais tau tias

ib txwm, liab txhais tau tias txawv txav, nws kuj tuaj yeem hloov pauv rau lub module thaum muaj kev khiav hauj lwm voltage.

Technical Parameters	FSP-A
Rated Ua Haujlwm Voltage Un (V ~)	380V/220V
Maximum Nruam Ua Haujlwm Voltage Uc (V ~)	275V	320V	385V	385V	385V	420V
Voltage tiv thaiv Level Up (V ~)kV	Tsawg dua los yog sib npaug rau 1.0	Tsawg dua los yog sib npaug rau 1.2	Tsawg dua los yog sib npaug rau 1.8	Tsawg dua lossis sib npaug rau 2.0	Tsawg dua lossis sib npaug li 2.2	Tsawg dua lossis sib npaug li 2.8
Nominal Discharge Current ln (8/20s)kA	5	10	20	30	40	60
Qhov siab tshaj tawm tam sim no lmax(8/20s)kA	10	20	40	60	80	100
Lub sij hawm teb (ns)	<25
Test Standard	IEC61643.1, GB18802.1
Kev ua haujlwm ib puag ncig (centigrade)	-40 degree ~ ntxiv rau 85 degree
Max Kev Txuas Kab	35mm2 nyuaj hlau / 35mm2 strand hlau tooj liab kab
Pom zoo txuas kab	16mm2 nyuaj hlau / 25mm2 strand hlau tooj liab kab
Kev teeb tsa	Standard Rail 35 hli
Khoom siv ntawm cov ntaub npog sab nrauv	Kub-pov thawj Nylon
